System Requirements Unless otherwise stated, only the latest update and patch level of 3rd party software is supported.
VMware Infrastructure
Platforms :
- vSphere 6.0
- vSphere 5.x
Hosts :
- ESXi 6.0
- ESXi 5.x
- ESX(i) 4.1
Software :
- vCenter Server 6.0 (optional)
- vCenter Server 5.x (optional)
- vCenter Server 4.1 (optional)
- vCloud Director 5.1, 5.5, 5.6, 8.0 (optional)
vSphere Virtual Machines
Virtual Hardware :
- All types and versions of virtual hardware are supported, including 62TB VMDK.
- Virtual machines with disks engaged in SCSI bus sharing are not supported, because VMware does not support snapshotting such VMs.
- RDM virtual disks in physical mode, Independent disks, and disks connected via in-guest iSCSI initiator are not supported, and are skipped from processing automaticall
OS :
- All operating systems supported by VMware.
- Application-aware processing for Microsoft Windows 2003 and later.

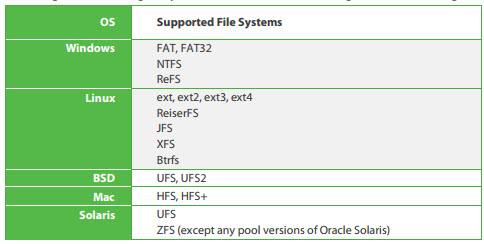

- File level restore is supported for the following file systems, including Microsoft Windows LDM (Logical Disk Manager) dynamic disks and Linux LVM (Logical Volume Manager):
Software :
- VMware Tools (optional)
Microsoft Infrastructure Platforms :
- Windows Server 2012 R2
- Windows Server 2012
- Windows Server 2008 R2 SP1
Hosts :
- Windows Server Hyper-V 2012 R2
- Windows Server Hyper-V 2012
- Windows Server Hyper-V 2008 R2 SP1
- Microsoft Hyper-V Server (free hypervisor) is supported
- Hosts must have all relevant Windows Server hot fixes installed ( refer to KB1838 )
Hyper-V Virtual Machines
Virtual Hardware :
- All types and versions of virtual hardware are supported, including Generation 2 virtual machine hardware and 64TB VHDX.
- Pass-through virtual disks and disks connected via in-guest iSCSI initiator are not supported, and are skipped from processing automatically.
OS :
- All operating systems supported by Hyper-V.
- Application-aware processing is supported for Microsoft Windows 2003 and later.

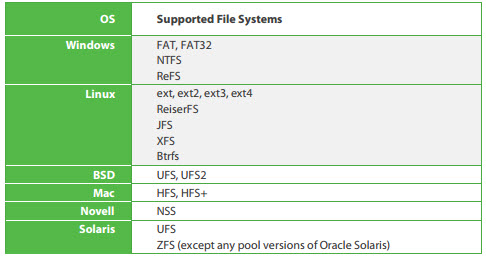

- File level restore is supported for the following file systems, including Microsoft Windows LDM (Logical Disk Manager) dynamic disks and Linux LVM (Logical Volume Manager):
Software :
- Hyper-V integration components (optional)
Veeam Backup & Replication Server
Hardware :
- CPU: x86-64 processor. Memory: 4 GB RAM plus 500 MB RAM for each concurrent job.
- Disk Space: 2 GB for product installation and 4.5 GB for Microsoft .NET Framework 4.5.2 installation. 10 GB per 100 VM for guest file system catalog folder (persistent data). Additional free disk space for Instant VM Recovery cache folder (non-persistent data, at least 10 GB recommended).
- Network: 1 Gbps or faster for on-site backup and replication, and 1 Mbps or faster for off-site backup and replication. High latency and reasonably unstable WAN links are supported.
OS : Only 64-bit version of the following operating systems are supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
Software :
- Microsoft SQL Server 2014/2012/2008R2/2008/2005 (SQL 2012 Express is included)
- System Center Virtual Machine Manager 2012R2/2012/2008R2 Admin UI (optional, to be able to register SCVMM server with Backup & Replication infrastructure)
- Microsoft .NET Framework 4.5.2 (included in the setup)
- Windows Installer 4.5 (included in the setup)
- Microsoft PowerShell 2.0 or later (optional)
- Firefox, Google Chrome, Microsoft Edge or Microsoft Internet Explorer 10.0 or later
Veeam Backup & Replication Console
Hardware :
- CPU : x86-64 processor. Memory: 2 GB RAM
- Disk Space: 500 MB for product installation and 4.5 GB for Microsoft .NET Framework 4.5.2 installation.
- Network: 1 Mbps connection to the backup server. High latency and low bandwidth impact user interface responsiveness.
OS : Only 64-bit version of the following operating systems are supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
Software :
- Microsoft .NET Framework 4.5.2 (included in the setup)
- Windows Installer 4.5 (included in the setup)
- Microsoft PowerShell 2.0 or later (optional)
- Firefox, Google Chrome, Microsoft Edge or Microsoft Internet Explorer 10.0 or later
Backup Proxy Server
Hardware :
- CPU: modern x86 processor (minimum 2 cores or vCPUs). Using multi-core processors improves data processing performance, and allows for more tasks to be processed concurrently by proxy.
- Memory: 2 GB RAM plus 200MB for each concurrent task. Using faster memory (DDR3) improves data processing performance.
- Disk Space: 300 MB.
- Network: 1 Gbps or faster for on-site backup and replication, and 1 Mbps or faster for off-site backup and replication. High latency and reasonably unstable WAN links are supported.
OS : For VMware backup proxy server, both 32-bit and 64-bit versions of the following operating systems are supported
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
- Microsoft Windows Vista SP2
For Hyper-V off-host backup proxy server, only the following operating system is supported:
- Microsoft Windows Server 2012 R2 with Hyper-V role enabled
- Microsoft Windows Server 2012 with Hyper-V role enabled
- Microsoft Windows Server 2008 R2 SP1 with Hyper-V role enabled
Software : For vSphere 5.5 backup proxy server on Microsoft Windows Server 2008 or earlier:
- Microsoft Visual C++ 2008 SP1 Redistributable Package (x64). Installation package can be downloaded from http://vee.am/runtime
Backup Repository Server
Hardware :
- CPU: x86 processor (x86-64 recommended).
- Memory: 4 GB RAM, plus up to 2 GB RAM (32-bit OS) or up to 4 GB RAM (64-bit OS) for each concurrent job depending on backup chain’s length and backup files sizes.
- Network: 1 Gbps or faster for on-site backup and replication, and 1 Mbps or faster for off-site backup and replication. High latency and reasonably unstable WAN links are supported.
OS : Both 32-bit and 64-bit (recommended) versions of the following operating systems are supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
- Microsoft Windows Vista SP2
- Linux (bash shell, SSH and Perl are required)
Tape Server
Hardware :
- CPU: x86 processor (x86-64 recommended).
- Memory: 2 GB RAM plus 200MB for each concurrent task.
- Disk Space: 300 MB.
- Network: 1 Gbps or faster.
OS : Both 32-bit and 64-bit (recommended) versions of the following operating systems are supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
- Microsoft Windows Vista SP2
WAN Accelerator Server
Hardware :
- CPU: x86-64 processor. Using multi-core processors improves data processing performance, and is highly recommended on WAN links faster than 10 Mbps.
- Memory: 8 GB RAM. Using faster memory (DDR3/DDR4) improves data processing performance.
- Disk Space: Disk space requirements depend on the WAN Accelerator role:Source WAN Accelerator requires 20 GB per 1 TB of source data to store digests of data blocks of source VM disks. Disk space consumption is dynamic and changes as unique VMs are added to (or removed from) to jobs with WAN Acceleration enabled.
- Target WAN Accelerator requires global cache size as defined by user (fixed amount). Disk space is reserved immediately upon selecting WAN Accelerators as a target one in any job.
- Network: 1 Gbps or faster for on-site backup and replication, and 1 Mbps or faster for off-site backup and replication. High latency and reasonably unstable WAN links are supported.
Hint : Global cache is not leveraged by Source WAN Accelerators, and so does not need to be allocated and populated on WAN Accelerators used only as source ones.
OS : Only 64-bit version of the following operating systems are supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
- Microsoft Windows Vista SP2
Backup Enterprise Manager
Hardware :
- Processor: x86-64 processor.
- Memory: 4 GB RAM.
- Hard Disk Space: 2 GB for product installation plus sufficient disk space to store guest file system catalog from connected backup servers (according to data retention policy)
- Network: 1 Mbps or faster connection to Veeam Backup & Replication servers.
OS : Only 64-bit version of the following operating systems is supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2 SP1
- Microsoft Windows Server 2008 SP2
- Microsoft Windows 10
- Microsoft Windows 8.x
- Microsoft Windows 7 SP1
Server Software :
- Microsoft Internet Information Services 7.0 or later
- Microsoft SQL Server 2014/2012/2008R2/2008/2005 (SQL 2012 Express included in the setup)
- Microsoft .NET Framework 4.5.2 (included in the setup)
- Windows Installer 4.5 (included in the setup)
Client Software :
- Firefox, Google Chrome, Microsoft Edge or Microsoft Internet Explorer 10.0 or later
- Microsoft Excel 2003 or later (to view Excel reports).
Veeam Backup Search Server :
- Hardware Refer to the Microsoft Search Server system requirements.
OS :
- Refer to the Microsoft Search Server system requirements.
Software :
- Microsoft Search Server 2010 (including Express Edition).
- Microsoft Search Server 2008 (including Express Edition).
Backup Target : Backup can be performed to the following disk-based storage :
- Local (internal) storage of the backup repository server.
- Direct Attached Storage (DAS) connected to the backup repository server, including external USB/eSATA drives and raw device mapping (RDM) volumes.
- Storage Area Network (SAN). Backup repository server must be connected into the SAN fabric via hardware or virtual HBA, or software iSCSI initiator, and the corresponding volumes must be mounted in the guest operating system of the backup repository server.
- Network Attached Storage (NAS) able to represent itself as SMB (CIFS) share (direct operation), or NFS share (must be mounted on a Linux backup repository server).
- EMC DataDomain (DD OS version 5.4, 5.5 or 5.6) with DDBoost license. Both Ethernet and Fibre Channel (FC) connectivity is supported.
- ExaGrid (firmware version 4.7 or later).
- HPE StoreOnce (firmware version 3.13.1 or later) with Catalyst license. Both Ethernet and Fibre Channel (FC) connectivity is supported.
Storage Integration Backup from Storage Snapshots and Veeam Explorer for Storage Snapshots is supported for the following storage devices :
EMC VNX and VNX2
- NFS, Fibre Channel (FC) or iSCSI connectivity.
EMC VNXe
- NFS, Fibre Channel (FC) or iSCSI connectivity.
HPE 3PAR StoreServ
- Fibre Channel (FC) or iSCSI connectivity.
- 3PAR OS 3.1.2 or later.
HPE StoreVirtual (LeftHand / P4000 series) and StoreVirtual VSA
- iSCSI connectivity only.
- SAN/iQ version 9.5 or later.
NetApp FAS, FlexArray (V-Series), Edge VSA and IBM N Series (NetApp FAS OEM)
- NFS, Fibre Channel (FC) or iSCSI connectivity.
- Data ONTAP version 8.1, 8.2 or 8.3
- 7-mode or cluster-mode
Tape
Hardware :
LTO3 or later tape libraries (including VTL) and standalone drives are supported. Tape device must be directly attached to the backup server, to a tape server via SAS, FC or iSCSI interface. Note that VMware does not support connecting tape libraries to ESXi 5.x for VM pass-through.
Software :
- We recommend that you install device-specific, vendor-supplied OEM driver for Windows are installed. Devices without such drivers installed will appear in Windows Device Manager as Unknown or Generic and require enabling native SCSI commands mode.
- If multiple driver installation modes are available for your tape device, use the one that allows for multiple open handles from a host to a drive to exist at the same time. For example, if your tape vendor provides“exclusive” and “non-exclusive” drivers, you should install the “non-exclusive” one.
- No other backup server must be interacting with the tape device.
Veeam Explorer for Microsoft Active Directory
Microsoft Active Directory Domain Controllers :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Microsoft Windows Server 2008
- Microsoft Windows Server 2003 SP2
Minimum supported domain and forest functional level is Windows 2003
Veeam Explorer for Microsoft Exchange
Microsoft Exchange :
- Microsoft Exchange 2016
- Microsoft Exchange 2013
- Microsoft Exchange 2010 SP1
Software :
- Microsoft Outlook 2010 or later (64-bit) for PST exports (optional)
Veeam Explorer for Microsoft SharePoint
Microsoft SharePoint :
- Microsoft SharePoint 2013
- Microsoft SharePoint 2010
Veeam Explorer for Microsoft SQL Server
Microsoft SQL Server :
- Microsoft SQL Server 2014
- Microsoft SQL Server 2012
- Microsoft SQL Server 2008 R2
- Microsoft SQL Server 2008
- Microsoft SQL Server 2005 SP4
Veeam Explorer for Oracle
OS : Both 32-bit and 64-bit version of the following operating systems is supported :
- Microsoft Windows Server 2012 R2
- Microsoft Windows Server 2012
- Microsoft Windows Server 2008 R2
- Microsoft Windows Server 2008
- Microsoft Windows Server 2003 SP2
- CentOS 5 or later
- RedHat 5 or later
- Oracle Linux 5 or later
- SUSE Linux Enterprise 12 (Oracle 12 only)
Oracle Database :
- Oracle 12
- Oracle 11
Configuration :
Oracle Automatic Storage Management (optional, requires ASMlib present)
